Schottky diode module MBRP,MUP
| Type | IF(AV) | VRRM | IFSM | VF | Tj | EAS | IRM | dv/dt | Lf | Ct | Outline |
| A | V | A | V | ℃ | MJ | mA | V/μs | nH | pF | ||

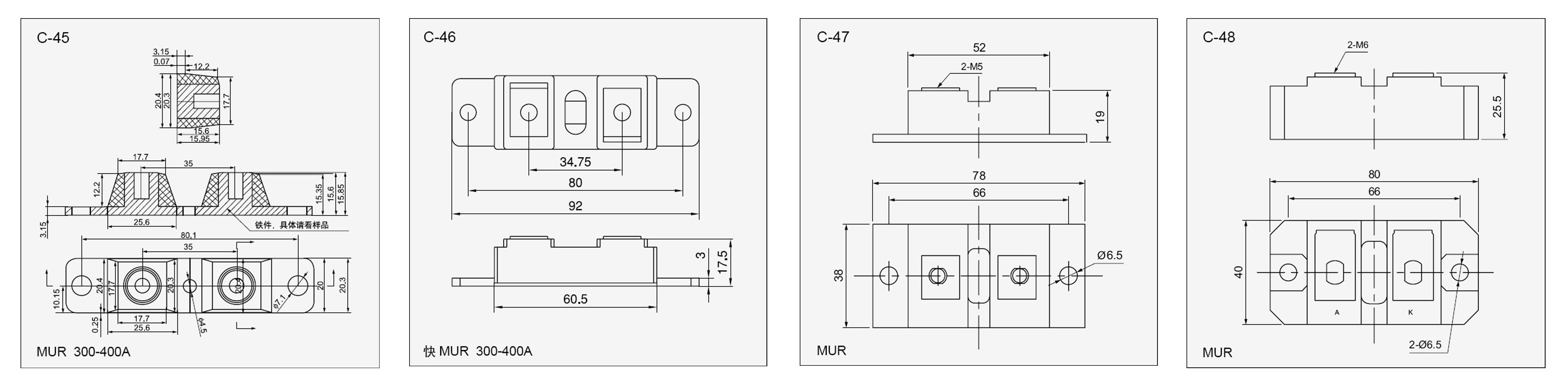

| M**200 | 200 | 35-45 | 25.000 | 0.45 | -55~150 | 180 | 10 | 10.000 | 4.0 | 10.300 | C-45,46,47,48 |
| M**300 | 300 | 35-45 | 26.000 | 0.50 | -55~150 | 180 | 15 | 10.000 | 4.5 | 10.300 | C-45,46,47,48 |
| M**400 | 400 | 35-45 | 29.000 | 0.52 | -55~150 | 180 | 20 | 10.000 |
