Fast switching thyristors (TBK,KK)
Back
  • Model Specification
Model Specification
Type VDRM
VRRM
IDRM
IRRM
ITRMS
(Tc℃)
ITRMS ITSM
20ms
iI²t VTM/ITM VT(TO) rT di/dt
cirt
dv/dt
com
VGT IGT Tj max Rth(j-c) Md tq Weight Outline
  V mA A A kA A²·10³ V/A V A/μs A/μs V V ℃/W Nm μs kg

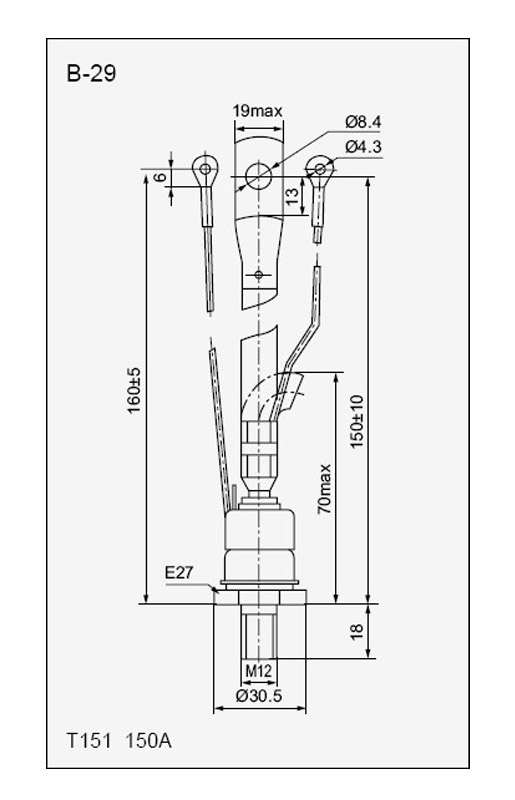

TBH351-80 600-1200 50 100(85) 157 2.0 25 2.40/314 1.20 2.40 800 1000 2.5 250 125 0.160 20-30 12.5,16,20 0.24 B-29

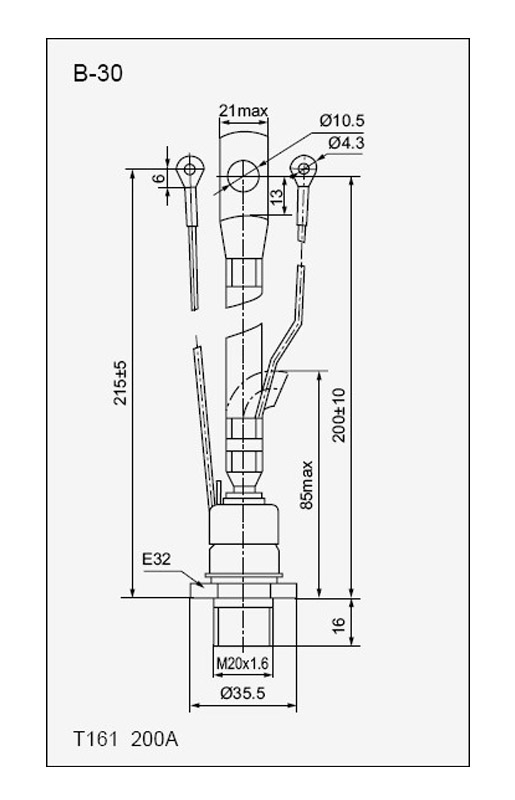

TBH361-150 600-1200 50 100(85) 157 2.5 31 2.40/314 1.40 2.40 800 1000 2.5 250 125 0.160 20-30 12.5,16,20 0.24 B-30

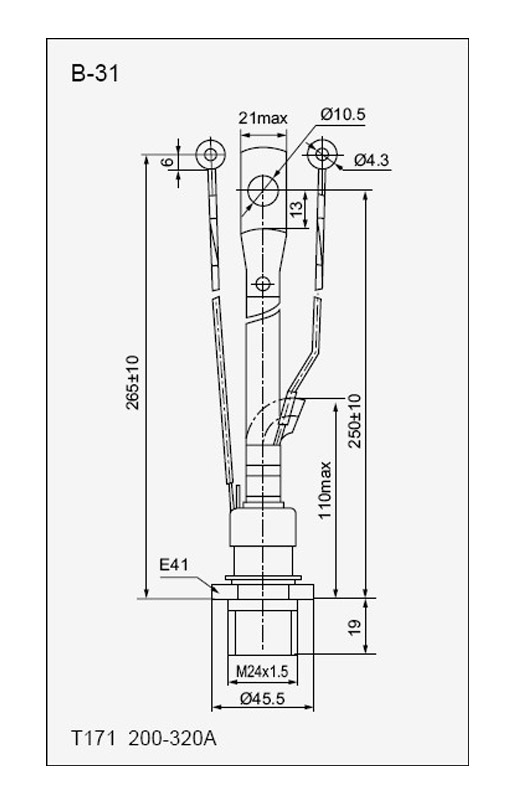

TBH371-250 600-1200 50 160(85) 250 4.0 80 2.70/502 1.40 1.20 1000 1000 2.5 300 125 0.090 25-35 10,12.5,16 0.44 B-31
TBH371-320 600-1200 40 200(85) 314 6.0 180 2.60/628 1.35 1.20 1000 1000 2.5 300 125 0.090 25-35 25,32,40,50 0.44 B-31
